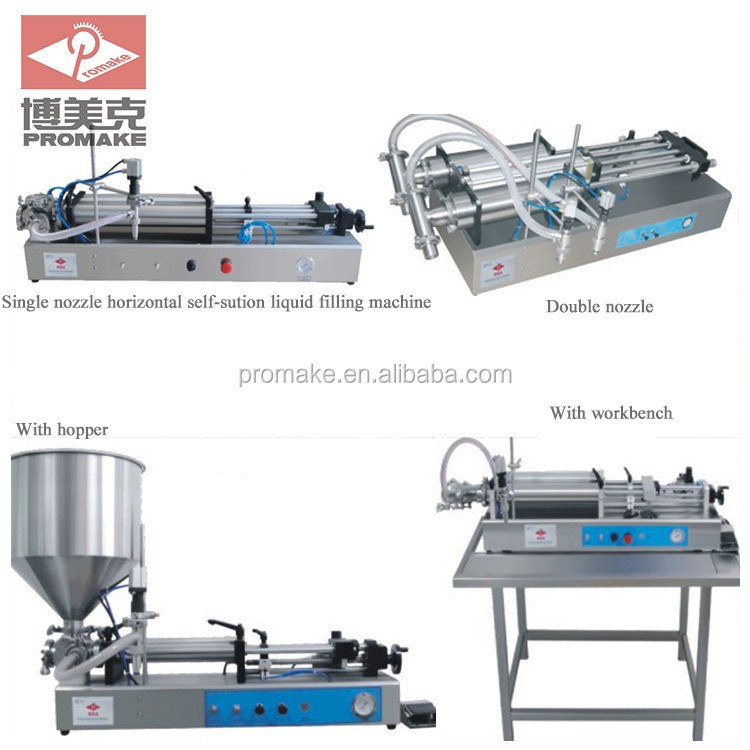

Promake liquid filling machine
GVT Series fast easy filler
shampoo liquid filling machine
Fill liquid, paste, cream
Volume: 0-50ml, 100-500ml, 500-1000ml
Nozzles: 1 or 2 nozzle
Main use: It is an ideal filler machine for medicine, daily chemical industry, food, pesticide and other particular fields.
Stainless steel body
Cylinder type
For paste, thick liquid, water, juice
Filling capacity: 0-50ml, 100-500ml, 500-1000ml (can be customized)
Nozzle quantity: 1 nozzle, 2 nozzle (optional
Liquid filling machine Instruction
This unit is developed on the basis of the new design, and it increases some additional function according to the similar products in the market. Filler has been added with an increase of some additional features. It is more simplified and more convenient for the operation, precision adjustment, filling volume adjustment, equipment cleaning, maintenance of the products, etc.
This small pneumatic filling machine can suck the material automatically.
Technology Parameter:
|
Model |
Filling Volumn |
Air Consumption |
Filling Speed |
Air Source |
|
GVT5-60 |
5-60ml |
19L/min |
0-30bot/min |
6kg |
|
GVT10-120 |
10-120ml |
15L/min |
0-30bot/min |
6kg |
|
GVT25-250 |
25-250ml |
30L/min |
0-30bot/min |
6kg |
|
GVT50-500 |
50-500ml |
45L/min |
0-30bot/min |
6kg |
|
GVT100-1000 |
100-1000ml |
120L/min |
0-30bot/min |
6kg |
|
GVT250-2500 |
250-2500ml |
250L/min |
0-30bot/min |
6kg |
|
GVT500-5000 |
500-5000ml |
428L/min |
0-30bot/min |
6kg |
