Stainless Steel Coconut Process Machine Apple Juice Squeezing Continuous

1 Set
MOQ
Stainless Steel Coconut Process Machine Apple Juice Squeezing Continuous
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Construction Works , Food & Beverage Shops, Advertising Company, Fruit Factory
Showroom Location: Kenya, South Africa, Kyrgyzstan, Uzbekistan, Tajikistan
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Type: Apple Juice Squeezing Machine
Voltage: According To Customer
Power: 18.5 KW
Weight: About 300kg
Dimension(L*W*H): 2000*800*1800
Year: 2019
Warranty: 1 Year
Material: 304 Stainless Steel
Application: Apple Juice
Function: Apple Juice Extracting
Capacity: According To Customer
Keywords: Apple Juicer
Color: Stainless Steel Color
Package: Wooden Box Or Simple Type
Advantage: High Quality ,continuous
Heating Source: Steam,electric Or Others
Final Product: Apple Juice Line
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Philippines, Peru, Indonesia, Thailand, Malaysia, Sri Lanka
After-sales Service Provided: Field Installation, Commissioning And Training
Certification: CE\ISO
Basic Infomation
Certification: CE\ISO
Payment & Shipping Terms
Packaging Details: simple package or wooden package
Supply Ability: 3 Set/Sets per Month
Product Description
Product Description



Name

apple juice squeezing machine

Structure

screw type ,we also have multi screw type and belt type

Application

apple juice milk extracting

Product Description



Product specifications: 0.5-2.5T / H, can be customized according to production capacity.
Working principle: The crushed pulp, juice and peel enter the screw juicer through the feed hopper. The bottom diameter of the
screw gradually increases along the slag outlet direction and the screw pitch gradually decreases. Shrink to form a squeeze on the
material. The direction of rotation of the screw spindle is counterclockwise when viewed from the feed hopper towards the slag
trough. The raw materials are fed into the feed hopper and pressed under the propulsion of the screw. The squeezed juice flows
into the juice receiver at the bottom through the filter, and the waste is discharged through the annular gap formed between the
screw and the pressure-adjusting conical part. The axial movement of the pressure regulating head can adjust the size of the gap.
Turning the handwheel bearing seat handwheel by hand can change the gap between the pressure regulator and the spiral cone
surface, that is, adjust the resistance of the slag discharge, you can change the slag rate, but if the gap is too small, under
strong squeeze Part of the slag particles will be squeezed out together with the juice through the filter. Although the juice
output increases, the quality of the juice relatively declines. The size of the gap should be determined by the user's specific
process requirements. So as to achieve the purpose of automatic separation of juice and residue.



Model
Capacity
LZ-0.5
0.1-0.3T/H
LZ-1.5
0.5-1T/H
LZ-2.5
1-2T/H

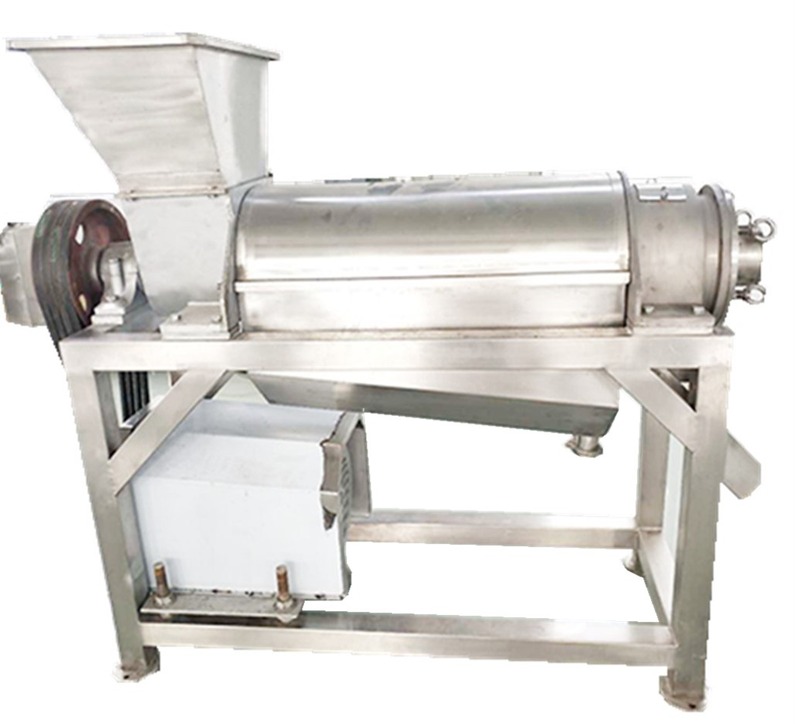

screw juicer
this is screw juice ,to extract the coconut meat
 multi screw juicer
this is multi screw juicer ,it is with higher juice extract rate
Coupon


Related Products

Packing&Shipping
our machine is big ,so to simple package ,some small accessories use wooden box package
After Sales Service
we offer one year warranty ,installion at your site
Company Introduction



Kunshan Qianwei Machinery Technology Co., Ltd, is committed to provide leading technology, high-quality product, individual solution and superior

service to the world’s food processer, supplier and all other customers. After nearly 10 years’ innovation and self-development, QIANWEI has been a leading supplier for whole plants of machinery and engineering for fruit processing, juice drink processing and etc. from A to Z. The design, fabrication and manufacture, installation, commissioning as well as the technical training and after sales are all handled by QIANWEI.



Technical innovation and quality improvement is the definite hallmark of QIANWEI. Not only most engineers and technicians directly came from Shanghai Light Industry Group with nearly 20 years experiences, but also QIANWEI is keeping in long-term stable relationship with the first class institutes or universities in terms of technical research and development, technical innovation, human resource sharing and etc. What is more, QIANWEI is devoted to absorb the word advanced technology all the time. QIANWEI has already set up a friendly technical and business cooperation with FBR, Ing. Rossi, Bertuzzi, CFT from Italy and etc.



QIANWEI are greatly willing to and stronly hopes to have a profitable cooperation with your valued company and wishes to contribute her wide knowledge, professional technologies and skilled technicans to the implementation of your project.



Our Services & Strength

1, provide customers with comprehensive design guidance, including:

   Market positioning guidance, product structure positioning, factory location guidance, process design, layout design, factory construction design guidance, equipment selection, equipment production and installation and commissioning, personnel training, after-sales service, etc.



2, provide customers with various types of processing single and turnkey turnkey projects, including:

(1) single equipment: washing machines, fruit sorting machines, conveyors, crushers, de-stone machine, seed extract machine, shredder, preheater, pre-cooking machine, blanching machine, beater, blending tank,storage tanks, fermentors tank, enzymolysis tank, forced external circulation vacuum concentrator, falling film evaporator, Pasteur pipe sterilizer, UHT ultra-high temperature sterilizer, four layers high viscosity tube in tube sterilization machine (aseptic type), aseptic filling machine,BIB filing machine linear filling machine, diagnostic reagent filling capping machine (aseptic type) , post pasteurizer spraying spray sterilization machine, roll bar water bath sterilization machine, inverted bottle sterilization machine, wind knife drying machine, conveyor, coconut vacuum water machine, coconut cutting machine, coconut peeling machine, CIP cleaning system and various Figure processing and various types of equipment designed according to requirements.



(2) Whole Line Turnkey Project: Fruit juice beverage production line such as melon juice, fruit jam production line such as tomato paste apple jam, VCO coconut oil production line, coconut water production line, mushroom comprehensive processing production line and various kinds of pickled vegetable processing production line Canned fruits and vegetables production line and all kinds of on-demand production line equipment.
