Cheap Price Cabbage Vegetable Cold Press Hydraulic Fruit Juicer For Sale

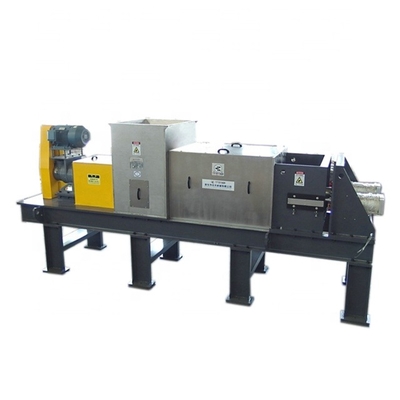

ZTZY dewatering screw press is a screw press separation equipment of continuous operation, which is used for organic material extrusion liquid and inorganic material slag separation. The dewatering screw press belongs to our company's 3rd generation screw extruder, it’s not a simple upgrade, but a subversive design and change.
The dewatering screw press is designed according to the superposition compression principle, mainly achieves the purpose of material press separation by the cooperation of the feeding box, spiral, screen stencil and tail cone.
Material to be treated is uniformly transported to the inlet of the dewatering screw press equipment, by means of a pump or a spiral conveyor, filtered by a spiral blade and screen, then water or juice is collected through a sieve to a water tray below the machine.
After being taken up by the pipeline, the slag separated by the press is conveyed to the storage place through the conveyor belt.
Fruits and vegetables, Flowers, Food processing, Bio-pharmaceuticals extrusion separation, Kitchen waste, Organic matter and inorganic matter waste, Dehydration of various manure, Solid-liquid separation.
Produce press higher dryness, zero discharge, and extract juice 100%.
|
Model |
Capacity(t/h) |
screw diameter(mm) |
rotate speed(r/min) |
Power(kw) |
Dimensions: length * width * height(mm) |
Weight(t) |
|
ZTZY-120 |
0.1~0.3 |
120 |
30 |
2.2/3 |
1900×420×700 |
0.5 |
|
ZTZY-180 |
0.3~1 |
180 |
20 |
5.5 |
2500×550×800 |
0.8 |
|
ZTZY-250 |
0.8~3 |
250 |
16 |
7.5 |
3100×650×900 |
1 |
|
ZTZY-315 |
2~5 |
315 |
16 |
11 |
4100×790×1320 |
2 |
|
ZTZY-400 |
5~13 |
400 |
10 |
22 |
4700×990×1420 |
4 |
|
ZTZY-500 |
8~18 |
500 |
9 |
37 |
6100×1200×1500 |
6 |
|
ZTZY-630 |
15~35 |
630 |
9 |
45 |
6800×1350×1650 |
7.5 |
|
ZTZY-800 |
25~50 |
800 |
7 |
75 |
7500×2300×2200 |
9 |
|
ZTZY-1000 |
30~70 |
1000 |
6 |
90 |
8100×2700×2600 |
12 |
