for the olive oil production line, we know and do better about it since we are on this line for almost 20 years.
even for one same line, different customers have different demands on it.now let me introduce the common way for a olive oil making that we supply:
we assimilated this style and technology from our Korean partner since 2000 and it is good for user to extract high quality oil from it, as no heating caused during the working.
its principle is the motor and hydraulic pump drive the plunger to press the oil/juice from the fruit, then oil/juice and cake will be separated.
|
Model |
YZYJ-17 |
|
Volume of pressing barrel |
17kg |
|
Average productivity |
85kg/h |
|
Power |
220v, 2.2kw+3kw |
|
pump pressure |
318t |
|
Pressing pressure |
60Mpa |
|
Material clinder height |
445mm |
|
Inner diameter of pressing barrel |
260mm |
|
Size |
1128*820*1600mm |
|
Weight |
1520kg |
|
Package |
Wood case |
|
Preheating function |
yes |
|
FOBQingdao |
USD4936.00/set |
|
|
|
Features & Advantages:
1. Compact design, smaller body takes up smaller space
2. Higher degree of automation.automatic pressing and temperature controling.
3. Alloy steel & stainless steel ensure the oil press machine durable and cleaning easily.
4. Double functions for hot or cold pressing.
5. Better performance for walnuts, sesame,coconut, avocado, sunflowers, palm seed etc.
6. high pressure and high quality vegetable oil without any additive.
7.Application industry: food, medicine,cosmetic, feed, chemical etc.
8. the oil filter and electric roaster for the machine is available.
There are several choice for collecting the olive juice, a SS crusher is widely use, also a hydraulic oil press is better, but for big qty, like 500kgs per hour, a industrial juice mill is good one.
To separate the oil and water, a cheap way is sediment and it need at least 20 hours, if you need quick and continue working, you can buy a tubal separator,treat 500L-2500L mixture per hour, if you use industrial horizontal centrifugal separator, the cost will be more expensive,
|
Item |
Fruit juice mill |
Fruit juice mill |
Juice mill |
|
Model |
SST-600 |
SST-900 |
SST-300 |
|
power |
220/380v, 3 phase,2.2kw + 2.2kw |
220/380v, 3 phase,4kw + 2.2kw |
220/380v, 3 phase,1.5kw + 1.5kw |
|
capacity |
1000kgs/h |
1500kgs/h |
500kgs/h |
|
size |
1150x450x1220mm |
1300x700x1300mm |
1100x450x950mm |
|
weight |
200kgs |
240kgs |
100kgs |
|
materials |
Apple, olive, coconut, pear etc |
Apple, olive, coconut, pear etc |
Apple, olive, coconut, pear etc |
|
Packing |
woodcase |
woodcase |
woodcase |
Olive Oil Press Machinew with Reliable Quality & Complete Service
sometimes, if your processing qty is over 200kgs per hour, like 500 or 1000kgs per hour, then a fully olive oil production line is necessary, as following:

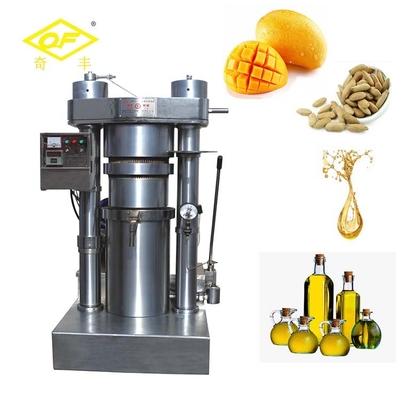

Olive Oil Press Machine with full olive oil production line
http://qfoilpress.en.alibaba.com
Nanyang City QiFeng Machinery Co.,Ltd has been specially engaged in research, develop and manufacture oil press machines for 20 years since 1999, Our 6YL series oil press machines achieve the national patent ,the number is ZL200530100110.7. Our main products are Screw Hot Oil Press machine, Screw cold&hot Oil Press machine, automatic Hydraulic Oil press machine,and the auxiliary products such as Material&Cake lifters, enviromental Electric Cylinder Roaster, peanut Sheller, Teaseed Sheller, Seed Cleaners , edible oil refining equipment, Seeds Frying machine and so on . Our service network has covered the whole country and exported to Southeast Asia, the Middle East, West Africa, Russia abroad.
All our parts are made of the high quality 20CrMnTi alloy steel , processed with the imported equipment through the process of cementit quenching and high frequency quenching.So the high hardness parts make our series of oil press machines distinguished in high oil yield and least wearing and tearing.
Qifeng company staffs warmly welcome customers at home and abroad to negotiate further business to pay visits to our factory for live experience!
i
service before sale:
After-sales services:
We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
1.1 year warranty with whole life after sales services overseas;
2.We can manufacture according to your sample, design and technical indexes;
3.We'll provide you the whole programme solution according to ur local customs, oil crops, local market demand;
4. After sale, we'll send our professionals to install and debug till you can handle normal operation.
5, one set OEM and one set painting design available
1. Q: Which kind of materials can be process?
A: All kinds of oil seeds. For example of common oil material:soybean, rice bran, corn germ, cottonseeds, peanut, sunflower, rapeseed,Mustard seeds, avocado, castor seeds, rapeseed, almonds, tea seeds, tung seeds, walnuts, sesame seeds, etc. palm fruit etc from the pre-treatment,pressing,solvent extraction and refining plant.
2. Q: What's the production capacity can you process?
A: 3-5000 tons per day. We can manufacture as customized order.
3.Q: How long is your guarantee ?
A: One Year guarantee. We shall supply free exchange for spare parts. After this period, we shall charge at low cost to keep after service. You will be welcome to contact us with any problem might occurred.
4.Q: How is the quality of your products ?
A : Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
5.Q:Can you install the machine in local place?
A: We will send our engineers to local place to help installing the machine and provide technical guidance.
6.Q: What's the payment terms?
A:T/T,Trade Assurance,Western Union, MoneyGram,L/C, Cash etc.
Q: How to choose oil press machine?
1.Based on ur local hobbit of cooking oil, u can choose fried material cooking oil making press or fresh material cooking oil mill press.
2, Different oil materials should be pressed by different model or design of oil press machine,
3, Choose the professional manufacturer to ensure warranty and after sales services, we have been in the oil machine manufacture filed since 1999, best solution manufacture of oil press machines,
Q: What should I do if I want to open an oil press machine mill plant?
1. Equip the hydraulic oil pess machine, the screw oil press machine and the auxiliary equipment, they are all essential and indispensable to invest a oil mill, and we can provide u all of those, for more, plz contact us for more information;
2. Find some more professional supplier and compare with each other.
Q: Why I choose u as my oil press machine supplier?
1.The main materials of our machines are all made of Alloy Steel, so we can guarantee its least wearing and tearing and durability;
2.We can provide u the whole solution to use this machine, including installing, debugging and after saling.
| Contact Person : | YAfeng LIU |
|---|
