Home /Products/Automatic Juice Machine/Horizontal Corner Milk Juice Sauce Packing Filling Beverage Spout Valve Doypack Stand Pouch Mayonnaise Machine

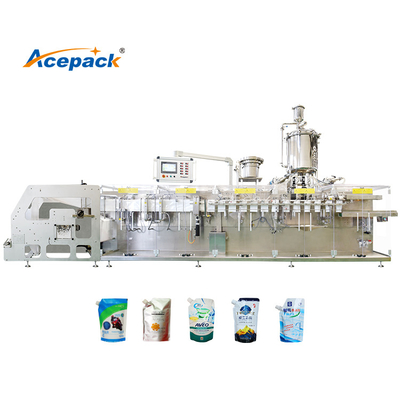

Horizontal Corner Milk Juice Sauce Packing Filling Beverage Spout Valve Doypack Stand Pouch Mayonnaise Machine

1.0 Sets
MOQ
Horizontal Corner Milk Juice Sauce Packing Filling Beverage Spout Valve Doypack Stand Pouch Mayonnaise Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Multi-Function Packaging Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Retail
Weight (KG): 2500
Showroom Location: Shanghai, China
Condition: New
Function: Sealing, FILLING
Application: Beverage, Medical, Chemical, Food
Packaging Type: Stand-up Pouch, Film, Pouch, Bags, Foil
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/380V
Dimension(L*W*H): 5550*1100*1400mm
Warranty: 1 Year
Key Selling Points: High-accuracy
Marketing Type: Hot Product 2022
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Production Capacity: 40bag/min, 50bag/min
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Packing Machine Material: Stainless Steel
Product Name: Horizontal Packaging Machine
Packing Machine Function: Doypcak Pouch Packing
Certification: CE Certification
Bag Type: Doypack,special,flat Pouch
Electrical Components Brand: Schneider/Siemens
Filling Products: Liquid/Solid/Granule
Packing Machine Speed: 30-60PPM
Main Function: Bagging Filling Sealing
Basic Infomation
Certification: CE Certification
Payment & Shipping Terms
Packaging Details: free fumigation wood box
Supply Ability: 20 Set/Sets per Month
Product Description

Automatic Packing Machine 1Kg Jam Doy Pack

This spout doypack packing machine is suitable for filling packing different liquid, paste and cream products such as water, oil, milk, juice, ketchup, tomato, sauce, peanut butter, honey, mayonnaise, liquid detergent, shampoo, body washing and other non free-flowing liquid when equipped with different filling machines like Piston Pump Filling, Peristaltic Pump Filling, Haibar Pump Filling. With the suitable filling
solution to meet the filling accuracy and packing speed requirements and avoid the liquid material bubble, forming, dripping, and splashing. The horizontal pouch packaging machine is a fully-automatic packing machine, which is widely used for food / beverage/cosmetics/chemicals/pharmaceuticals packaging.
Products Description

Model

DS-180SC
Pouch Size
90*110mm(Min);160*260mm(Max)
Filling Capacity
1000ml
Packing Capacity
40-60ppm
Power
8KW
Air Consumption
250NL/min
Dimension(L*W*H)
5550*1100*1400mm
Weight
2200kg
Function
Doy pack, Shape, Hanging hole, Top spout
1. Film unwinding 2. Bottom Hole Punching 3. Pouch Forming 4. Film Guide 5. Bottom Seal
6. Vertical Seal I 7. Vertical Seal II 8.Tear Notch 9. Photocell 10. Servo Advance 11. Cutting
12. Pouch Catching I 13. Pouch Opening 14. Air Flushing 15. Filling I 16.Filling II 17. Spout Seal
18. Vibrator Feeder 19. Top Seal I 20. Top Seal II 21. Finished Product 22. Outlet
The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.
Our Advantages
We have always been convinced that only strict quality control, excellent process management do provide client more reliable quality, longer service life and more favorable price. Acepack research on ISO 9001 Quality Management System since the establishment. With the company's development and the scale expansion, now our company's supply chain system have full implementation of ERP management, combined with PDM system and OA, CRM system, our company realized enterprise informationization
construction.

Till now, our company has obtained 17 invention patents, 55 utility model and design patents. There are 4 invetion patents and 8 utility model patents under application.
Our Service
Customers And Exhibition
Our Company
FAQ
1. Are you manufacturer or trading company?
We are manufacturer. Our factory is located in Shanghai, warmly welcome to visit us.
2. How far is your factory from the airport?
Our factory is only 1 hour from Shanghai Pudong International Airport (PVC) and Shanghai Hongqiao Airport. We can pick you up from the airport.
3. Can you pick me up from my hotel in the downtown of Shanghai?
Yes, sure.
4. What kind of bags can your packing machine pack?
Our packing machine can pack doypack( stand up pouch) and sachet( flat bag). Optional function includes adding zipper, spout, making shaped pouch, etc.
5. What product can your packing machine pack?
Our packing machine can pack different types of product, such as powder, granule and liquid. Also our machine can pack irregular product.
6. What is the packing capacity( speed) of your machine?
We have simplex machine(30-80 ppm), duplex machine(60-160 ppm), triplex machine(90-240 ppm) and quadruplex machine(120-320 ppm).
7. What kind of payment do you accept?
We accept bank transfer and letter of credit. For other payment, please check with us.
8. How long is the delivery time?
It depends on which model you order. Standard machine commonly is 30-60 days. Customized machine need longer time.
