Electric Heating Coil Type UHT Sterilizer Milk/Yogurt/Juice/Beverage/Beverage Pasteurizer

1.0 Units
MOQ
Electric Heating Coil Type UHT Sterilizer Milk/Yogurt/Juice/Beverage/Beverage Pasteurizer
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Other
Condition: New
Voltage: 220V/380V/415V/440V/480V
Power: 38.25KW
Weight: 500 KG
Dimension(L*W*H): 920*1500*1400mm
Warranty: 1 Year
Key Selling Points: Sustainable
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: China Economical Steam Heating Coil Type UHT Sterilizer Pasteurizer
Application: Milk/Yogurt/Juice/Beverage/Beverage
Material: SS304, SS316 Is Also Available
Capacity: 500L/H,1000L/H,2000L/H
Processing: Milk Sterilizer
Liquid Inlet: 30℃ To 45℃
Sterilization Temperature: 95℃-135℃
Sterilization Time: 4 To 6 S,can Extended To 2 To 15 S
15S Automatic: Manual/Semi-automatic/Full Automatic
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard Plywood box for Coil Type UHT Sterilizer
Supply Ability: 8 Unit/Units per Month
Product Description
Product Overview

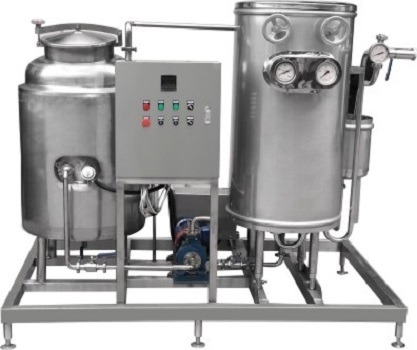

Electric heating Coil type Sterilization machine

It is suitable for sterilization of liquid materials, that is, sterilization before packaging. Application of coil type ultra-high temperature instantaneous sterilization (UHT): suitable for instantaneous sterilization of liquid materials such as fresh milk, fruit juice, beverages, popsicles, and ice cream slurry, soy sauce, soy milk, condensed milk, wine, etc. Sterilization of fluid materials.
FEATURES AT A GLANCE
Main parts:
1.main sterilizer
2.material pump
3.balance tank
4.heat transfer oil tank
5.electric cabinet
PRODUCT SPECIFICATIONS
Model
MP1000L
MP2000
Processing power
0.5-1T/H
1.5-2T/H
Sterilization temperature
95-135℃
95-135℃
Steam pressure
<0.4MPa
<0.4MPa
High temperature heating time
4-6S
4-6S
Discharge temperature
<65℃
<65℃
Motor power
2.2KW
2.2KW
Body size(mm)
920*1500*1400
1100*1600*1700
Weight
480KG
580KG
Why Choose Us
Initiated in 1993, Wenzhou Jiangbo Dairy Product Equipment Manufacturing Factory has gone through 20 manufacturing years in Diary&Beverage industry. 20 years of experience brought us a first batch of specialized frontline technical workers and core engineers, winning widely reputation and faith among domestic market. A lot of supports from our clients promoting Jiangbo to move forward, We do not just stay where we begin.
In year of 2013, we established Zhejiang Zhongbo Mechanical Technology Co.,Ltd.In an effort to keep pace with automation technology development, talents and advanced automatic equipment were constantly introduced, laser cutting, automatic polishing, automatic welding etc .Within 10 years, we have took a big step in production technology, furthermore broadened our production scope involving to Pharmaceutical and Chemical filed.
In year of 2021, we has established and passed ISO9001:2000 quality assurance system to improve production management and after-sale services.

Certifications
Automation Technology
Argon arc welding is a welding technology that uses argon gas as a shielding gas. It is to
pass argon protective gas around the arc welding to isolate the air outside the welding area and prevent the oxidation of the
welding area
Laser cutting machine
Improve stability and precision of cutting
Polishing machine
used for equipment surface
Manufacturing Workshop
Delivery & Packaging
