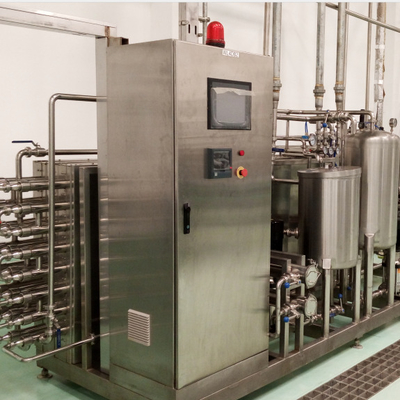

Automatic milk pasteurizer,tube in tube sterilizer juice pasteurizer uht food beverage sterilizer for tomato paste jam
Description of the sterilizer:
The machine is used for the sterilizing of tomato paste, onion psate, chill paste, strawberry paste, blackberry paste, carrot paste, peach paste, apricot paste etc.
The sterilizer is composed of products buffer tank, lobe pump, high pressure tri-piston pump, four layer sleeving pipe or multi- pipe heat exchanger, superheating water generator,hot water tank, CIP tank, hot water pump, CIP pump and electric control system.
Includes heating section, sterilizing section and conlinn oo ube group has the features of simple structure and small resistance.
SIEMENS or OMRON electrical components, the PLC monitor can indicate every parameter directly to inspect it in time easily and guarantee the stability of running.
Automatic PLC system, multi-stage recorder to record important temperature.
Superheating water device
Hot water circulation passing centrifugal pump
Temperature automatic control system,CIP device
Caustic soda and acid feeding tank, Centrifugal pump is used for the circulation of cleaning liquor.
Main Technical Parameter of Sterilizer
|
Model |
Capacity Kg/h |
Model |
Cooling temperature ℃ |
Power Consumption kw |
Steam Consumption kg/h |
Water Consumption 20℃kg/h |
Compressed air consumption kg/h |
Dimension |
|
GC-SJ-1 |
1000 |
110 |
32-45 |
14.1 |
150 |
5000 |
0.1 |
8000×800×1000 |
|
GC-SJ-2 |
2000 |
110 |
32-45 |
19.2 |
300 |
10000 |
0.1 |
8000×1000×1000 |
|
GC-SJ-3 |
3000 |
110 |
32-45 |
33 |
450 |
15000 |
0.3 |
8000×1200×1200 |
|
GC-SJ-6 |
6000 |
110 |
32-45 |
64.5 |
900 |
42000 |
0.3 |
8000×1200×1800 |
|
GC-SJ-8 |
8000 |
110 |
32-45 |
80.5 |
1200 |
56000 |
0.4 |
8000×1200×1800 |
|
GC-SJ-10 |
10000 |
110 |
32-45 |
110 |
1500 |
70000 |
0.5 |
8000×1400×2000 |
|
GC-SJ-12 |
12000 |
|
|
132 |
1800 |
84000 |
0.5 |
8000×1400×2000 |
Our Products cover Tomato paste production line, Fruit juice production line (apple, orange, Berries, Guava, Mango, Pineapple, etc.), Yoghurt /Milk Powder production line, fruit vegetable washing /pulping/de-stoner/ juice extractor machine, falling film evaporator, sterilizing system. We also provide cooling milk storage tank, bottle filling machine, Powder spraying tower, CIP system, Beer processing equipment, etc.
